진올바이오테크놀러지 (GeneAll Biotechnology)

Overview

GeneAll® Exgene™ Tissue SV Plus는 동물 조직, 배양된 세포뿐 아니라 전혈 (whole blood and its derivatives)에서 total DNA를 분리하는

간단하고 신속한 방법을 제공합니다. Exgene™ Tissue SV mini의 경우 사용하는 시료의 종류에 따라 최대 50 μg까지 추출 가능한 제품입니다.

01

Format

Advanced silica-based nucleic acid purification
Spin column format
midi와 maxi kit 사용 시, 4000 x g 이상의 swinging-bucket rotor를 장착한 원심분리기가 필요합니다.

02

High purity

Stable and consistent result
High yield and purity : A₂₆₀ / A₂₈₀ = 1.8~2.0

03

Simple and safe procedure

No phenol/chloroform extractions
No alcohol precipitation

04

Applications and permission

Ready for use in PCR, southern blotting, AFLP, RFLP, RAPD and other enzymatic reactions.
체외진단의료기기 품목허가/신고
체외 제신 15-576 호

specifications

Technical Information

Specifications

Exgene™ Tissue SV Plus mini

Exgene™ Tissue SV Plus midi

Exgene™ Tissue SV Plus maxi

Format

Column type G mini

Column type G midi

Column type G maxi

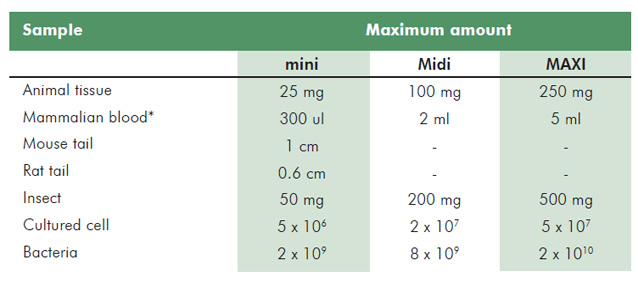

Maximum sample size

~25 mg

~100 mg

~250 mg

Preparation time

25~220 minutes

40~250 minutes

Maximum loading volume

750 μl

5 ml

16 ml

Binding capacity

60 μg

200 μg

600 μg

Elution volume

30~400 μl

200~600 μl

0.4~2 ml

Storage conditions

Store at room temperature (15~25℃)

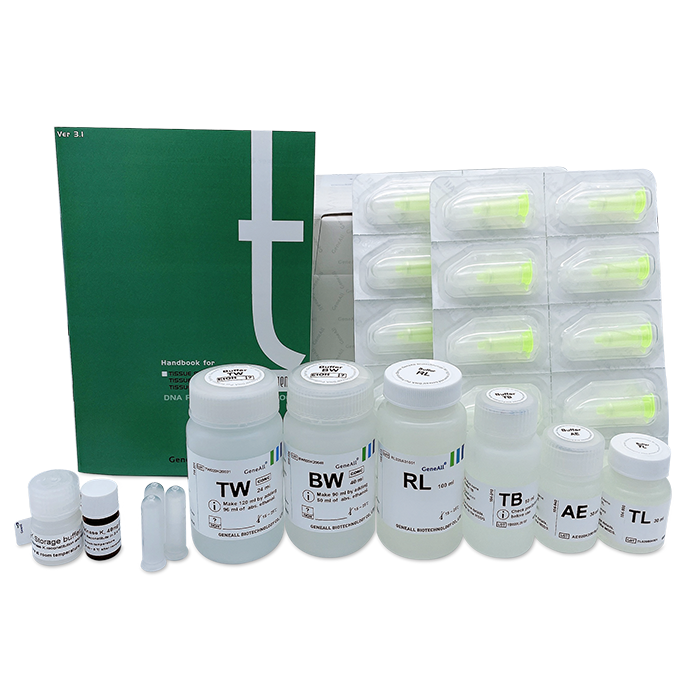

Kit Contents

Product	Exgene™ Tissue SV Plus mini
Cat. No.	109-106	109-101	109-152
Type	mini	mini	mini
Number of preparation	6 *	100	250
Components	Quantity
Column type G mini	6	100	250
2 ml collection tube	12	200	500
Buffer RL	7 ml	100 ml	250 ml
Buffer TL	3 ml	30 ml	80 ml
Buffer TB	4 ml	50 ml	110 ml
Buffer BW **	2 ml	40 ml	90 ml
Buffer TW **	2 ml	24 ml	50 ml
Buffer AE	3 ml	30 ml	60 ml
Proteinase K	2.6 mg	48 mg	120 mg
PK storage buffer	1 ml	4 ml	7 ml
Kit manual	1	1	1
* Sample: free for testing ** Concentrated: absolute ethanol required

Product	Exgene™ Tissue SV Plus midi
Cat. No.	109-204	109-226	109-201
Type	midi	midi	midi
Number of preparation	4 *	26	100
Components	Quantity
Column type G midi	4	26	100
15 ml collection tube	4	26	100
Buffer RL	30 ml	200 ml	250 ml x 3
Buffer TL	6 ml	30 ml	120 ml
Buffer TB	10 ml	60 ml	240 ml
Buffer BW **	7 ml	40 ml	90 ml x 2
Buffer TW **	5 ml	24 ml	50 ml x 2
Buffer AE	3 ml	30 ml	120 ml
Proteinase K	13 mg	60 mg	120 mg x 2
PK storage buffer	1 ml	4 ml	7 ml x 2
Kit manual	1	1	1
* Sample: free for testing ** Concentrated: absolute ethanol required

Product	Exgene™ Tissue SV Plus maxi
Cat. No.	109-302	109-310	109-326
Type	maxi	maxi	maxi
Number of preparation	2 *	10	26
Components	Quantity
Column type G maxi	2	10	26
50 ml collection tube	2	10	26
Buffer RL	30 ml	200 ml	250 ml x 2
Buffer TL	8 ml	40 ml	100 ml
Buffer TB	15 ml	80 ml	240 ml
Buffer BW **	7 ml	40 ml	90 ml
Buffer TW **	5 ml	24 ml	50 ml x 2
Buffer AE	3 ml	30 ml	60 ml
Proteinase K	13 mg	48 mg	120 mg
PK storage buffer	1 ml	4 ml	7 ml
Kit manual	1	1	1
* Sample: free for testing ** Concentrated: absolute ethanol required
