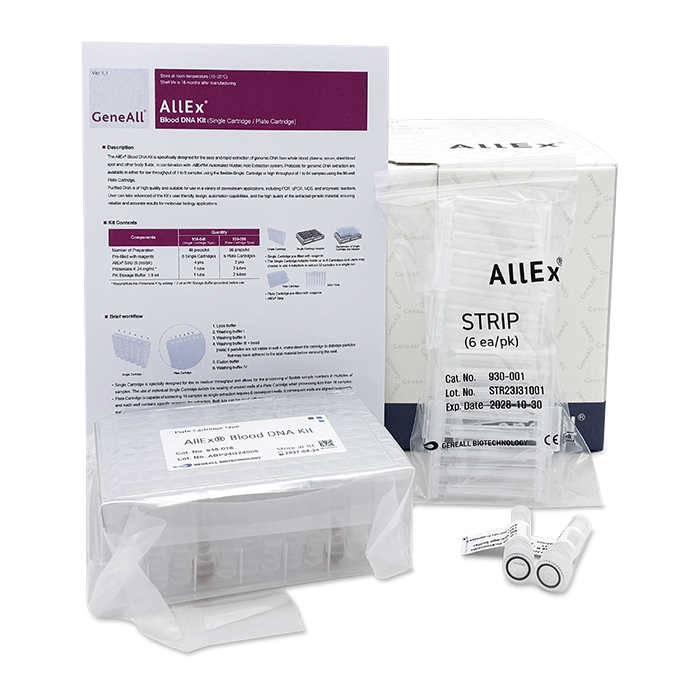

AllEx® Blood DNA Kit

AllEx® Blood DNA Kit provides optimal automated extraction of DNA from whole blood, dried blood spot, plasma, serum, buffy coat and body fluids using AllEx®64 Automated Nucleic Acid Extraction System. Optimized protocol enables efficient DNA extraction from lymphocytes, granulocytes, and cultured cell as well. The extracted DNA is of excellent quality and compatible with a number of downstream applications including PCR, qPCR, NGS and enzymatic reaction.

SCALE / SIZE

Overview

AllEx® Blood DNA Kit provides optimal automated extraction of DNA from whole blood, dried blood spot, plasma, serum,

buffy coat and body fluids using AllEx®64 Automated Nucleic Acid Extraction System.

Optimized protocol enables efficient DNA extraction from lymphocytes, granulocytes, and cultured cell as well.

The extracted DNA is of excellent quality and compatible with a number of downstream applications including PCR, qPCR, NGS and enzymatic reaction.

01

Format and Compatibility

  • Magnetic bead technology
  • Compatible with AllEx®64 Automated Nucleic Acid Extraction System
02

Stable and consistent result

  • High yield and purity
  • The use of Proteinase K can help improve the yield & purity of DNA.
03

Simple and easy procedure

  • Easy of use with novel, pre-filled reagent cartridges (single/plate)
04

Applications

  • Suitable for the downstream applications such as PCR, qPCR, NGS, enzymatic reactions and other molecular diagnostic testing.

specifications

Technical Information

Features Specifications
Format

Compatible with magnetic bead-based equipment

(AllEx®64 Automated Nucleic Acid Extraction System)
Applicable samples
  • Whole blood (fresh, cold and frozen)
  • Serum
  • Plasma
  • Buffy coat
  • Dried blood spot (DBS)
  • Granulocyte
  • Lymphocyte
  • Cultured cell
  • Buccal swab
  • Saliva
  • etc.
Maximum amount of starting samples
 Up to 300 μl
Preparation time

P1 Protocol : 12' 28''

P2 Protocol : 20' 23''
Elution volume Up to 80 μl
Storage conditions Store at room temperature (15 ℃ to 25 ℃)

Kit Contents

Kit

AllEx® Blood DNA Kit

AllEx® Blood DNA Kit

Cat. No.

935-048

935-096

Type

Single Cartridge

Plate Cartridge

Number of Preparation

48T

96T

Pre-filled with reagents

 6 pks (8 Single Cartridges/pk) 6 pks (1 Plate Cartridge/pk)
AllEx® Strip (6 pcs/pk) 4 pks 2 pks
Proteinase K 1 tube x 24 mg 2 tubes x 24 mg
PK Storage Buffer 1 tube x 1.5 ml 2 tubes x 1.5 ml
